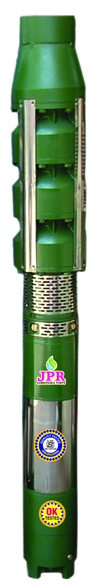

We are a renowned firm engaged in manufacturing and supplying V6 / V8 Submersible PumpSet. These pumps are designed using advanced machines and production techniques so as to provide or clients with best-in-class products. Our procuring agents ensure that the raw material for the product is sourced from reliable vendors only. Further, we also provide customization for the product as per their specification detailed by our clients for their maximum satisfaction.
JPR Submersible Pumps is leading V6 / V8 Submersible PumpSet manufacturers in India. JPR Submersible Pumps presents newly designed Janta Model Pump investment casted stainless steel pump sets for agriculture irrigation.
Satisfied customers in the market testify to the superior quality of Shiv Submersible Pump Sets.
| DISCHARGE | ||||
| Bore Dia | Series | In L.P.M. | Motor H.P. | Head at Duty Range |
| 200 mm | Mixed Flow | 650 to 2500 | 7.5 to 25.0 | 10 Mtrs to 120 Mtrs |
| SPECIFICATION : | ||||
| Power Range | 7.5 HP to 25.0 HP | |||
| Voltage | 250 - 415 V, A.C., 50 Hz, 3PH | |||
| Speed | 2850 RPM | |||
| Flow Rate | 650 Lpm to 2500 Lpm | |||
| Total Head Range | 10 Mtrs to 120 Mtrs | |||
| Outlet Size in Inches | 75mm & 100 mm | |||
| Maximum Outer Diameter | 192 mm | |||
| Type of Duty | S1 (Continuous) | |||
| Method of Starting | 5.0 to 7.5 HP - D.OL | |||
| S.D. shall be Supplied for 7.5 HP on Specified Requirement 10.0 to 25 HP - S.D. | ||||
| Cable Connection | Sheathed PVC Insulated 3- Core Flat Cable | |||
| MATERIAL OF CONSTRUCTION PUMP : | ||||
| Part Name | Material | |||
| Check Valve Housing | C.I. | |||
| Impeller | S.S. Cast | |||
| Diffuser | C.I. | |||
| Pump Shaft | S.S. 410/431 | |||
| Suction Inter Connector | C.I. | |||
| Coupling | S.S. 410 | |||
| MATERIAL OF CONSTRUCTION MOTOR : | ||||
| Part Name | Material | |||
| Upper, Lower, Housing & Motor-Base | C.I. | |||
| Stator Shell | S.S. 304 | |||
| Shaft | S.S. - 410/431 | |||
| Journal Bush | Leaded Bronze | |||
| Thrust Assembly | S.S. & Impregnated Carbon/ S.S. & Impregnated Teflon | |||
| APPLICATION : | Water Extraction From Boreholes For Large Irrigation | |||
| Large Irrigation | ||||
| Agriculture & Institutes Water Supply | ||||
| Civil & Industrial Water Supply | ||||
| Rural Water Supply | ||||
>> High Operating efficiency resulting in lower Consumption
>> Extemely hardwearing Parts
>> Highly Durable
>> Can be easily dismantled and repaired
>> Dynamically balanced rotating parts ensures long life
>> Designed for wide voltage fluctuatioons
>> More Longevity & Hygiene
>> Copper rotor for higher starting torque
