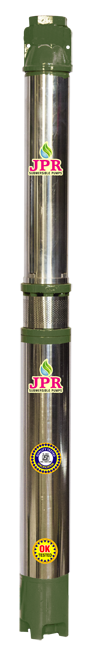

Backed by a team of experienced professionals, we are offering V4 Submersible Pump that is used in household water systems, hot water feed pumps, agriculture, ship construction, etc.
The offered product is manufactured using supreme class raw material and cutting edge technology. This pump is available in various shapes, sizes and dimensions. Further, our renowned clients can also avail this product from us in customized options within the specified time-frame.
Satisfied customers in the market testify to the superior quality of Shiv Submersible Pump Sets.
| SPECIFICATION : | |
| Power Range | 0.5 HP to 5.0 HP - 1PH |
| 1.0 HP to 5.0 hp - 3PH | |
| Voltage | 180 - 240 V, A.C., 50 Hz, 1PH |
| 250 - 415 V, A.C., 50 Hz, 3PH | |
| Speed | 2850 RPM |
| Floe Rate | 13 Lpm to 300 Lpm - 1PH (R/LR/HR) |
| 13 Lpm to 300 Lpm - 3PH (MF) | |
| Total Head Range | 8 to 200 Mtrs. (R/LR/HR) |
| 11 to 70 Mtrs. (MF) | |
| Outlet Size in Inches | 25mm, 32mm, 40mm & 50mm |
| Maximum Outer Diameter | 96 mm |
| Type of Duty | S1 (Continuous) |
| Method of Starting | Capacitor Start & Capacitor Run (CSCR) |
| Direct On Line (D.OI) - 3PH | |
| Cable Connection | Sheathed PVC Insulated 3-Core Flat Cable |
| MATERIAL OF CONSTRUCTION OF PUMP : | |
| Part Name | Material |
| Check Valve Housing | C.I. |
| Impeller | Nory1* |
| Diffuser | Nory1* with SS Cladding (Fpr KLASSIS Pump) |
| Pump Shell (Tube) | S S 304 or S S 202 (Foe S-Std. Pump Only) |
| Pump Shaft | S S 410 |
| Suction Case | C.I. |
| Coupling | S S 410 |
| MATERIAL OF CONSTRUCTION OF MOTOR : | |
| Part Name | Material |
| Upper, Lower, Housing & Motor-Base | C.I. |
| Stator Shell | S S 304 or Equivalent |
| Shaft | S S 410 |
| Journal Bush | Loaded Bronze |
| Thrust Assembly | S.S. & Impregnated Carbon/ S.S. & Impregnated Teflon |
| APPLICATION : | Water Supply From Bore-Well |
| Domestic Water Supply | |
| Small Farms, Gardening & Nurseries | |
>> High Operating efficiency resulting in lower Consumption
>> Extemely hardwearing Parts
>> Highly Durable
>> Can be easily dismantled and repaired
>> Dynamically balanced rotating parts ensures long life
>> Designed for wide voltage fluctuatioons
>> More Longevity & Hygiene
>> Copper rotor for higher starting torque
